| الاسم التجاري: | ECHU |
| رقم الطراز: | UL3478 |
| الـ MOQ: | 300 متر |
| السعر: | USD0.655-USD2.288/M |
| شروط الدفع: | / تي تي، ويسترن يونيون، خطاب الاعتماد |
| القدرة على التوريد: | 10000 كم / أسبوع |

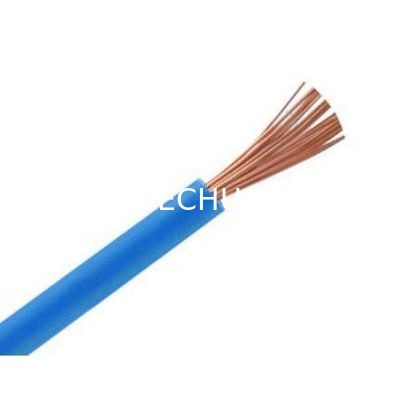

EPDM insulation Cable UL CABLE UL3478
UL Approval
Rating: 125 deg C, 600 Vac, Horizontal flame.
Conductor: 26 AWG - 4/0AWG, solid or stranded
Standard: Appliance Wiring Material UL 758
Application:
Internal Wiring of Lighting Fixtures, Appliances or Electronic Equipment, where exposed to temperatures not exceeding 125 deg C.
| Type | Size | O.D.(mm) | Weight(KG/KM) |
| UL3478 | 26AWG | 2.2 | 8 |
| UL3478 | 25AWG | 2.3 | 8 |
| UL3478 | 24AWG | 2.4 | 9 |
| UL3478 | 23AWG | 2.4 | 10 |
| UL3478 | 22AWG | 2.5 | 11 |
| UL3478 | 21AWG | 2.6 | 12 |
| UL3478 | 20AWG | 2.7 | 13 |
| UL3478 | 19AWG | 2.8 | 15 |
| UL3478 | 18AWG | 2.9 | 17 |
| UL3478 | 17AWG | 3.1 | 19 |
| UL3478 | 16AWG | 3.2 | 23 |
| UL3478 | 15AWG | 3.4 | 27 |
| UL3478 | 14AWG | 3.6 | 32 |
| UL3478 | 13AWG | 3.9 | 38 |
| UL3478 | 12AWG | 4.1 | 45 |
| UL3478 | 11AWG | 4.6 | 56 |
| UL3478 | 10AWG | 4.9 | 68 |
| UL3478 | 9AWG | 5.3 | 84 |
| UL3478 | 8AWG | 6.5 | 113 |
| UL3478 | 7AWG | 7.7 | 148 |
| UL3478 | 6AWG | 8.8 | 186 |
| UL3478 | 5AWG | 9.5 | 225 |
| UL3478 | 4AWG | 10.2 | 272 |
| UL3478 | 3AWG | 11.2 | 332 |
| UL3478 | 2AWG | 12.1 | 405 |
| UL3478 | 1AWG | 14.1 | 526 |
| UL3478 | 1/0AWG | 15.2 | 642 |
| UL3478 | 2/0AWG | 16.6 | 789 |
| UL3478 | 3/0AWG | 18.1 | 973 |
| UL3478 | 4/0AWG | 19.8 | 1203 |
