| الاسم التجاري: | ECHU |
| رقم الطراز: | 300 فولت إيفجي 600 فولت أو 1000 فولت عشية |
| الـ MOQ: | 100 م |
| السعر: | USD0.101-USD10.958/m |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 10000 كم / أسبوع |

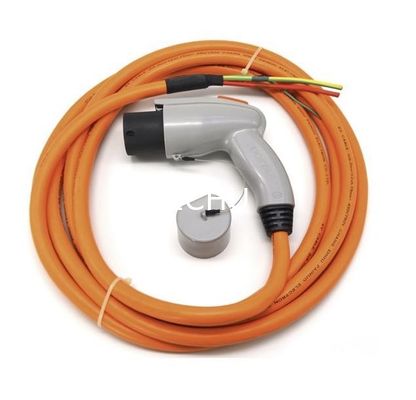

Charging Cables
·Applications:
applicable to charging cables of rated voltages up to and including 300V;600V or 1000V for connection set for conductive charging of electric vehicles.
·Properties:

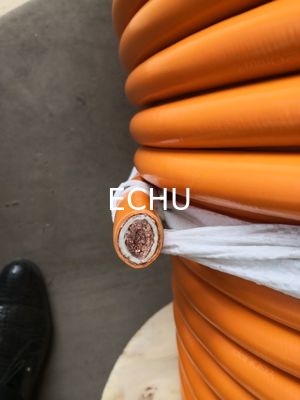

Conductor:Multiple stranded conductor
Insulation:TPE
Jacket:TPE
◆ PRODUCT DESCRIPTION:
lemperature range:-40℃~105℃
Rating voltage:300V,600V or 1000V Reference standard:UL 2263-2022
Flame Test:VW-1
Min Bending radius:6xD
| Type | Size | Conductor Stranded OD mm(Ref.) | Over diameter Non Shielded mm (Ref) | Max.Conductor resistance mΩ/m@20℃ |
| 300EVJE | 3x16AWG+1x18AWS | 1.5/1.2 | 10.8 | 14.1/22.4 |
| 3x14AWG+1x18AWS | 1.9/1.2 | 11.6 | 8.88/224 | |
| 3x12AWG+1x18AWG | 2.4/1.2 | 12.5 | 5.58/22.4 | |
| 3×16AWG+2x18AWS | 1.5/1.2 | 11.7 | 14.1/22.4 | |
| 3x14AWG+2x18AWS | 1.9/1.2 | 12.5 | 8.88/22.4 | |
| 3x12AWG+2x18AWS | 2.4/1.2 | 13.6 | 22.4 | |
| 600V or 1000V EVE | 2×8AWG+10AWG | 4.5/3.2 | 21.5 | 2.23/3.51 |
| 2×6AWG+8AWG | 5.5/4.5 | 24.5 | 1.40/2.23 | |
| 2x4AWG+6AWG | 6.7/5.5 | 28 | 0.882/1.4 | |
| 2×2AWG+4AWG | 8.5/6.7 | 31.2 | 0.555/0.882 | |
| 3x16AWG+1×18AWG | 1.5/1.2 | 12 | 14.1/224 | |
| 3×14AWG+1×18AWG | 1.9/1.2 | 14.1 | 8.88/22.4 | |
| 3×12AWG+1×18AMG | 2.4/1.2 | 15 | 5,58/22.4 | |
| 3×10AWG+1×18AWG | 3.0/1.2 | 16.4 | 3.51/224 | |
| 2×8AWG+10AwG+18AWG | 4.5/3.2 | 21.5 | 2.23/3.51/22.4 | |
| 2×6AWG+8AWG+18AWG | 5.5/4.5 | 24.1 | 1.40/2.23/22.4 | |
| 2x4AWG+6AWG+18ANG | 6.7/5.5 | 28.5 | 0.882/1.4/22.4 | |
| 2×2AWG+4AWG+18AWG | 8.2/6.6 | 31 | 0.555/0.882722.4 | |
| 3×16AWG+2×18AWG | 1.5/1.2 | 13 | 3.51/224 | |
| 3×14AWG+2×18AWG | 1.9/1.2 | 14,5 | 8.88/22.4 | |
| 3×12AWG+2x18AWG | 2.4/1.2 | 16 | 5.58/22.4 | |
| 3×10AWG+2×18AWG | 3.0/1.2 | 16.5 | 3.51/22.4 | |
| 2×8AWG+10AWG+2x16AWG | 4.5/3.2 | 21.6 | 2.23/3.51 | |
| 2×6AWIG+8AWG+2x18AWG | 5.5/4.5 | 24 | 1.40/2.23 | |
| 2x4AWG+6AWG+2×184WG | 6.7/5.5 | 28.2 | 0.882/1.4 | |
| 2×2AWG+4AWG+2×18AWG | B2/6.6 | 31 | 0.555/0.882 | |
| 2×1/0AWG+2AWC | 10.5/8.2 | 39,5 | 0.349/0.555 | |
| 2×3/0AWG+1/0AWS | 13.05/10.5 | 46.8 | 0.219/0.349 |
