| الاسم التجاري: | ECHU |
| رقم الطراز: | FDES ، FDGG ، FDEU ، FDEH ، FDGU |
| الـ MOQ: | 100-300 م |
| السعر: | USD1.2-USD20.6/M |
| شروط الدفع: | T/T ، Western Union |
| القدرة على التوريد: | 100000 كم / الأسبوع |

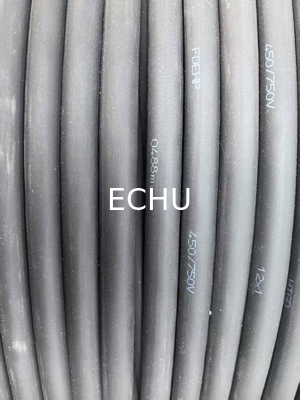

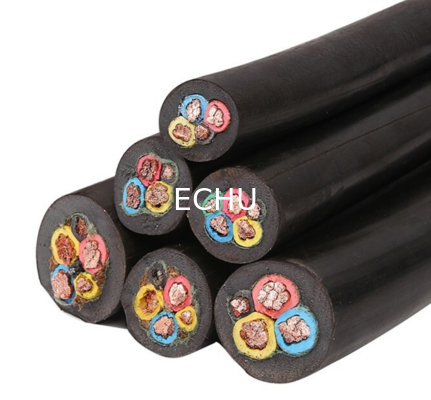

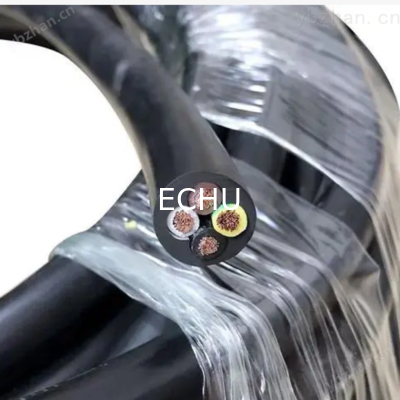

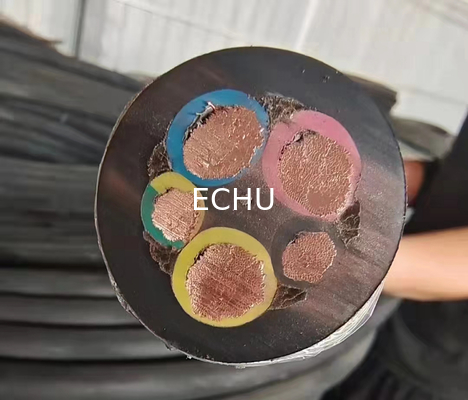

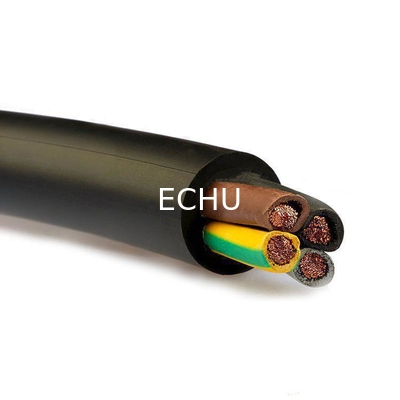

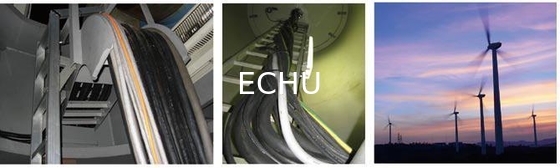

Flexible and torsion resistant cables of rated voltages up to and including 1.8/3kV for wind turbine GB/T 29631-2013
Application Characteristics
Voltage grade 450/750V: 70℃
Voltage grade 0.6/1KV, 1.8/3KV: 90℃
Ordinary:-25℃
Cold resistant: -40℃
Freezing resistant: -55℃
|
芯数及导体标称截面 Number &nonminal cros5-5ectional area of conductor mm² |
平均外径 Mean overall diameter mm |
|||
| 450V/750V0.6/1kV | 0.6/1kV | |||
| FDEF FDES FDGG FDEG FDEH | FDEU FDGU | |||
|
下限 Lower limit |
上限 Upper limit |
下限 Lower limit |
上限 Upper limit |
|
| 1×1.5 | 5.7 | 7.1 | 48 | 5.9 |
| 1×2.5 | 6.3 | 7.9 | 5.4 | 6.7 |
| 1×4 | 7.2 | 9.0 | 6.3 | 7.8 |
| 1×6 | 7.9 | 9.8 | 6.7 | 8.4 |
| 1×10 | 9.5 | 11.9 | 8.3 | 10.5 |
| 1×16 | 10.8 | 13.4 | 9.5 | 11.7 |
| J×25 | 12.7 | 15.8 | 11.4 | 14.1 |
| 1×35 | 14.3 | I7.9 | 127 | 16.0 |
| 1×50 | 16.5 | 20.6 | 14.8 | 18.4 |
| 1×70 | 18.6 | 23.3 | 16.6 | 20.9 |
| 1×95 | 20.8 | 26.0 | 18.8 | 23.6 |
| 1×120 | 22.8 | 28.6 | 20.8 | 26.3 |
| 1×150 | 25.2 | 31.4 | 23.1 | 28.9 |
| 1×185 | 27.6 | 34.4 | 25.2 | 31.7 |
| 1×240 | 30.6 | 38.3 | 28.2 | 35.6 |
| 1×300 | 33.5 | 41.9 | 31.1 | 39.2 |
| 1×400 | 37.4 | 46.8 | 34.9 | 43.8 |
| 2×1 | 7.7 | 10.0 | 6.9 | 9.0 |
| 2×1.5 | 8.5 | 11.0 | 7.6 | 9.8 |
| 2×2.5 | 10.2 | 13.1 | 9.0 | 11.6 |
| 2×4 | 11.8 | 15.1 | 10.6 | 13.7 |
| 2×6 | 13.1 | 16.8 | 1.8 | 15.1 |
| 2×10 | 17.7 | 22.6 | 15.6 | 19.9 |
| 2×16 | 20.2 | 25.7 | 17.9 | 22.8 |
| 2×25 | 24.3 | 30.7 | 21.8 | 27.6 |
