| Brand Name: | ECHU |
| Model Number: | UL2464 |
| MOQ: | 300 م |
| السعر: | USD0.113-USD0.608/m |
| Payment Terms: | T/T، ويسترن يونيون |
| Supply Ability: | 10000 كم / أسبوع |
مقاومة الحرارة
خصائص عزل جيدة
شهادة UL

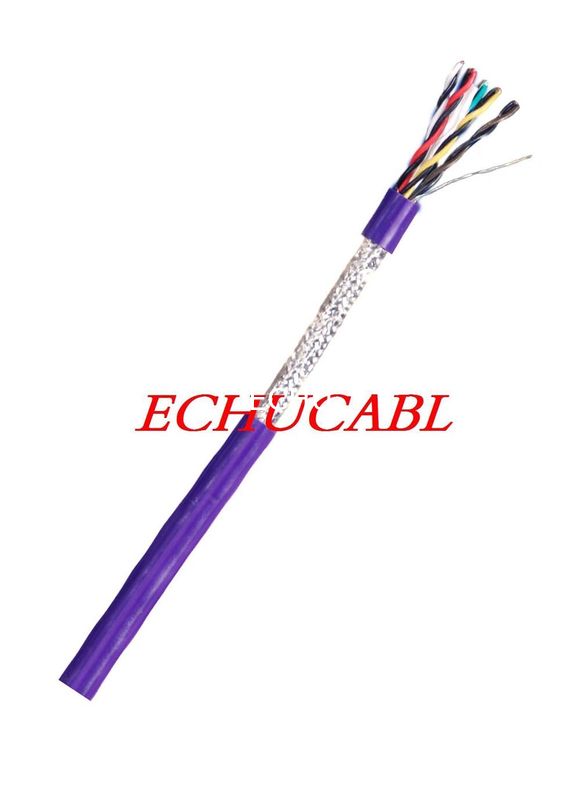

UL2464 الأسلاك والكابلات
التطبيقات:
ككابل للقياس والرصد والتحكم ، فهي مناسبة لمواقع تصنيع أدوات الآلات ، هندسة تركيب المعدات الكاملة ، محطة الطاقة ، المعدات الثلاجة ،معدات أ.أ.، نظام معالجة البيانات ونظام التدفئة والتكييف.
الخصائص:
مقاومة الحرارة، خصائص العزل الجيدة، الأداء الكيميائي الممتاز، غطاء الطحن
المعايير: UL 758
الهيكل:
موصل: خيوط رقيقة من أسلاك النحاس المحنطة، مقاومة ممتازة للتآكل.
العزل: PVC خاص
اللون: مطابقة لـ UL 758
الغطاء: 80 PVC مقاوم للحرارة مقاوم للنار ، اجتاز اختبار VW-1 للنار
اللون: الأسود (RAL9005) الأخضر (RAL6018)
البرتقالي ((RAL2003) الأرجواني ((RAL4001)
أو الرجوع إلى متطلبات العملاء.
البيانات التقنية:
الجهد الاسمي: 300 فولت
فولتاج الاختبار: 2000 فولت
نطاق الحرارة
التركيب الثابت: -40C إلى +80C
تثبيت الميل: -10 درجة مئوية إلى +80 درجة مئوية
الحد الأدنى لقطر الانحناء:
التركيب الثابت: 4X قطر الخارجي
المنشأة المرنة: 15قطر خارجي
| النوع | الحجم | قائد | موصل OD:φ | الوزن في كيلوغرام/كيلومتر | OD إلى أسفل محدودة ملم | حد أقصى من OD mm |
| UL2464 | 26AWG*2C | 7 | 0.16 | 24.5 | 4.0 | 4.4 |
| UL2464 | 26AWG*3C | 7 | 0.16 | 28 | 4.2 | 4.6 |
| UL2464 | 26AWG*4C | 7 | 0.16 | 32.9 | 4.5 | 4.9 |
| UL2464 | 26AWG*5C | 7 | 0.16 | 38.1 | 4.9 | 5.3 |
| UL2464 | 26AWG*6C | 7 | 0.16 | 43.6 | 5.3 | 5.7 |
| UL2464 | 26AWG*7C | 7 | 0.16 | 46.6 | 5.3 | 5.7 |
| UL2464 | 26AWG*8C | 7 | 0.16 | 52.1 | 5.6 | 6 |
| UL2464 | 26AWG*9C | 7 | 0.16 | 59 | 6.2 | 6.6 |
| UL2464 | 26AWG*10C | 7 | 0.16 | 65.7 | 6.5 | 6.9 |
| UL2464 | 26AWG*11C | 7 | 0.16 | 70.7 | 6.7 | 7.1 |
| UL2464 | 26AWG*12C | 7 | 0.16 | 72.8 | 6.7 | 7.1 |
| UL2464 | 26AWG*13C | 7 | 0.16 | 75.7 | 7.1 | 7.5 |
| UL2464 | 26AWG*14C | 7 | 0.16 | 78.7 | 7.1 | 7.5 |
| UL2464 | 26AWG*15C | 7 | 0.16 | 84.5 | 7.4 | 7.8 |
| UL2464 | 26AWG*16C | 7 | 0.16 | 87.6 | 7.4 | 7.8 |
| UL2464 | 26AWG*17C | 7 | 0.16 | 93.6 | 7.8 | 8.2 |
| UL2464 | 26AWG*18C | 7 | 0.16 | 96.6 | 7.8 | 8.2 |
| UL2464 | 26AWG*19C | 7 | 0.16 | 99.6 | 7.8 | 8.2 |
| UL2464 | 26AWG*20C | 7 | 0.16 | 104.2 | 8.0 | 8.4 |
| UL2464 | 26AWG*21C | 7 | 0.16 | 108.7 | 8.2 | 8.6 |
| UL2464 | 26AWG*22C | 7 | 0.16 | 116 | 8.7 | 9.1 |
| UL2464 | 26AWG*23C | 7 | 0.16 | 122.3 | 9.1 | 9.5 |
| UL2464 | 26AWG*24C | 7 | 0.16 | 125.3 | 9.1 | 9.5 |
| UL2464 | 26AWG*25C | 7 | 0.16 | 130.1 | 9.3 | 9.7 |
| UL2464 | 26AWG*26C | 7 | 0.16 | 133.1 | 9.3 | 9.7 |
| UL2464 | 26AWG*27C | 7 | 0.16 | 136.1 | 9.3 | 9.7 |
| UL2464 | 26AWG*28C | 7 | 0.16 | 142.1 | 9.6 | 10.0 |
| UL2464 | 26AWG*29C | 7 | 0.16 | 145.1 | 9.6 | 10.0 |
| UL2464 | 26AWG*30C | 7 | 0.16 | 148.2 | 9.6 | 10.0 |
| UL2464 | 26AWG*31C | 7 | 0.16 | 154.5 | 10.0 | 10.6 |
| UL2464 | 26AWG*32C | 7 | 0.16 | 157.5 | 10.0 | 10.6 |
| UL2464 | 26AWG*33C | 7 | 0.16 | 160.6 | 10.0 | 10.6 |
| UL2464 | 26AWG*34C | 7 | 0.16 | 167.2 | 10.4 | 11 |
| UL2464 | 26AWG*35C | 7 | 0.16 | 170.2 | 10.4 | 11 |
| UL2464 | 26AWG*36C | 7 | 0.16 | 173.2 | 10.4 | 11 |
| UL2464 | 26AWG*37C | 7 | 0.16 | 171.3 | 10.2 | 10.8 |
| UL2464 | 24AWG*2C | 11 | 0.16 | 27.2 | 4.1 | 4.5 |
| UL2464 | 24AWG*3C | 11 | 0.16 | 31.7 | 4.4 | 4.8 |
| UL2464 | 24AWG*4C | 11 | 0.16 | 37.8 | 4.7 | 5.1 |
| UL2464 | 24AWG*5C | 11 | 0.16 | 44.3 | 5.1 | 5.5 |
| UL2464 | 24AWG*6C | 11 | 0.16 | 51.1 | 5.6 | 6 |
| UL2464 | 24AWG*7C | 11 | 0.16 | 55.2 | 5.6 | 6 |
| UL2464 | 24AWG*8C | 11 | 0.16 | 62.1 | 6 | 6.4 |
| UL2464 | 24AWG*9C | 11 | 0.16 | 70.6 | 6.6 | 7 |
| UL2464 | 24AWG*10C | 11 | 0.16 | 79 | 7 | 7.4 |
| UL2464 | 24AWG*11C | 11 | 0.16 | 85.4 | 7.3 | 7.7 |
| UL2464 | 24AWG*12C | 11 | 0.16 | 88.3 | 7.3 | 7.7 |
| UL2464 | 24AWG*13C | 11 | 0.16 | 91.7 | 7.6 | 8 |
| UL2464 | 24AWG*14C | 11 | 0.16 | 95.8 | 7.6 | 8 |
| UL2464 | 24AWG*15C | 11 | 0.16 | 103 | 8 | 8.4 |
| UL2464 | 24AWG*16C | 11 | 0.16 | 107.1 | 8 | 8.4 |
| UL2464 | 24AWG*17C | 11 | 0.16 | 114.6 | 8.5 | 8.9 |
| UL2464 | 24AWG*18C | 11 | 0.16 | 118.7 | 8.5 | 8.9 |
| UL2464 | 24AWG*19C | 11 | 0.16 | 122.8 | 8.5 | 8.9 |
| UL2464 | 24AWG*20C | 11 | 0.16 | 128.7 | 8.7 | 9.1 |
| UL2464 | 24AWG*21C | 11 | 0.16 | 134.5 | 8.9 | 9.3 |
| UL2464 | 24AWG*22C | 11 | 0.16 | 143.5 | 9.5 | 9.9 |
| UL2464 | 24AWG*23C | 11 | 0.16 | 151.3 | 9.9 | 10.5 |
| UL2464 | 24AWG*24C | 11 | 0.16 | 155.4 | 9.9 | 10.5 |
| UL2464 | 24AWG*25C | 11 | 0.16 | 161.5 | 10.2 | 10.8 |
| UL2464 | 24AWG*26C | 11 | 0.16 | 165.6 | 10.2 | 10.8 |
| UL2464 | 24AWG*27C | 11 | 0.16 | 169.7 | 10.2 | 10.8 |
| UL2464 | 24AWG*28C | 11 | 0.16 | 177.2 | 10.5 | 11.1 |
| UL2464 | 24AWG*29C | 11 | 0.16 | 181.3 | 10.5 | 11.1 |
| UL2464 | 24AWG*30C | 11 | 0.16 | 185.4 | 10.5 | 11.1 |
| UL2464 | 24AWG*31C | 11 | 0.16 | 193.4 | 10.9 | 11.5 |
| UL2464 | 24AWG*32C | 11 | 0.16 | 197.5 | 10.9 | 11.5 |
| UL2464 | 24AWG*33C | 11 | 0.16 | 201.6 | 10.9 | 11.5 |
| UL2464 | 24AWG*34C | 11 | 0.16 | 209.8 | 11.4 | 12 |
| UL2464 | 24AWG*35C | 11 | 0.16 | 213.9 | 11.4 | 12 |
| UL2464 | 24AWG*36C | 11 | 0.16 | 218 | 11.4 | 12 |
| UL2464 | 24AWG*37C | 11 | 0.16 | 222.1 | 11.4 | 12 |
| UL2464 | 22AWG*2C | 17 | 0.16 | 32.2 | 4.4 | 4.8 |
| UL2464 | 22AWG*3C | 17 | 0.16 | 38.1 | 4.7 | 5.1 |
| UL2464 | 22AWG*4C | 17 | 0.16 | 45.8 | 5.1 | 5.5 |
| UL2464 | 22AWG*5C | 17 | 0.16 | 54 | 5.6 | 6 |
| UL2464 | 22AWG*6C | 17 | 0.16 | 62.5 | 6 | 6.4 |
| UL2464 | 22AWG*7C | 17 | 0.16 | 68 | 6 | 6.4 |
| UL2464 | 22AWG*8C | 17 | 0.16 | 76.7 | 6.5 | 6.9 |
| UL2464 | 22AWG*9C | 17 | 0.16 | 87.2 | 7.2 | 7.6 |
| UL2464 | 22AWG*10C | 17 | 0.16 | 97.7 | 7.6 | 8 |
| UL2464 | 22AWG*11C | 17 | 0.16 | 105.8 | 7.9 | 8.3 |
| UL2464 | 22AWG*12C | 17 | 0.16 | 109.9 | 7.9 | 8.3 |
| UL2464 | 22AWG*13C | 17 | 0.16 | 114.1 | 8.3 | 8.7 |
| UL2464 | 22AWG*14C | 17 | 0.16 | 119.5 | 8.3 | 8.7 |
| UL2464 | 22AWG*15C | 17 | 0.16 | 128.6 | 8.8 | 9.2 |
| UL2464 | 22AWG*16C | 17 | 0.16 | 134 | 8.8 | 9.2 |
| UL2464 | 22AWG*17C | 17 | 0.16 | 143.4 | 9.2 | 9.6 |
| UL2464 | 22AWG*18C | 17 | 0.16 | 148.8 | 9.2 | 9.6 |
| UL2464 | 22AWG*19C | 17 | 0.16 | 154.3 | 9.2 | 9.6 |
| UL2464 | 22AWG*20C | 17 | 0.16 | 161.8 | 9.5 | 9.9 |
| UL2464 | 22AWG*21C | 17 | 0.16 | 169.2 | 9.7 | 10.1 |
| UL2464 | 22AWG*22C | 17 | 0.16 | 180.3 | 10.4 | 11.0 |
| UL2464 | 22AWG*23C | 17 | 0.16 | 190.2 | 10.8 | 11.4 |
| UL2464 | 22AWG*24C | 17 | 0.16 | 195.6 | 10.8 | 11.4 |
| UL2464 | 22AWG*25C | 17 | 0.16 | 203.3 | 11.1 | 11.7 |
| UL2464 | 22AWG*26C | 17 | 0.16 | 208.8 | 11.1 | 11.7 |
| UL2464 | 22AWG*27C | 17 | 0.16 | 214.2 | 11.1 | 11.7 |
| UL2464 | 22AWG*28C | 17 | 0.16 | 223.6 | 11.5 | 12.1 |
| UL2464 | 22AWG*29C | 17 | 0.16 | 229.1 | 11.5 | 12.1 |
| UL2464 | 22AWG*30C | 17 | 0.16 | 234.5 | 11.5 | 12.1 |
| UL2464 | 22AWG*31C | 17 | 0.16 | 244.5 | 12 | 12.6 |
| UL2464 | 22AWG*32C | 17 | 0.16 | 249.9 | 12 | 12.6 |
| UL2464 | 22AWG*33C | 17 | 0.16 | 255.3 | 12 | 12.6 |
| UL2464 | 22AWG*34C | 17 | 0.16 | 265.6 | 12.4 | 13.0 |
| UL2464 | 22AWG*35C | 17 | 0.16 | 271.1 | 12.4 | 13.0 |
| UL2464 | 22AWG*36C | 17 | 0.16 | 276.5 | 12.4 | 13.0 |
| UL2464 | 22AWG*37C | 17 | 0.16 | 281.9 | 12.4 | 13.0 |
| UL2464 | 20AWG*2C | 26 | 0.16 | 40.9 | 4.9 | 5.3 |
| UL2464 | 20AWG*3C | 26 | 0.16 | 48.9 | 5.2 | 5.6 |
| UL2464 | 20AWG*4C | 26 | 0.16 | 59.3 | 5.7 | 6.1 |
| UL2464 | 20AWG*5C | 26 | 0.16 | 70.4 | 6.2 | 6.6 |
| UL2464 | 20AWG*6C | 26 | 0.16 | 81.9 | 6.8 | 7.2 |
| UL2464 | 20AWG*7C | 26 | 0.16 | 89.5 | 6.8 | 7.2 |
| UL2464 | 20AWG*8C | 26 | 0.16 | 101.2 | 7.4 | 7.8 |
| UL2464 | 20AWG*9C | 26 | 0.16 | 115.3 | 8.1 | 8.5 |
| UL2464 | 20AWG*10C | 26 | 0.16 | 129.4 | 8.7 | 9.1 |
| UL2464 | 20AWG*11C | 26 | 0.16 | 140.5 | 8.9 | 9.3 |
| UL2464 | 20AWG*12C | 26 | 0.16 | 146.2 | 8.9 | 9.3 |
| UL2464 | 20AWG*13C | 26 | 0.16 | 151.6 | 9.4 | 9.8 |
| UL2464 | 20AWG*14C | 26 | 0.16 | 159.2 | 9.4 | 9.8 |
| UL2464 | 20AWG*15C | 26 | 0.16 | 171.4 | 10 | 10.4 |
| UL2464 | 20AWG*16C | 26 | 0.16 | 179 | 10 | 10.4 |
| UL2464 | 20AWG*17C | 26 | 0.16 | 191.6 | 10.5 | 11.1 |
| UL2464 | 20AWG*18C | 26 | 0.16 | 199.2 | 10.5 | 11.1 |
| UL2464 | 20AWG*19C | 26 | 0.16 | 206.9 | 10.5 | 11.1 |
| UL2464 | 20AWG*20C | 26 | 0.16 | 217.1 | 10.8 | 11.4 |
| UL2464 | 20AWG*21C | 26 | 0.16 | 227.3 | 11.1 | 11.7 |
| UL2464 | 20AWG*22C | 26 | 0.16 | 242.1 | 11.8 | 12.4 |
| UL2464 | 20AWG*23C | 26 | 0.16 | 255.3 | 12.4 | 13 |
| UL2464 | 20AWG*24C | 26 | 0.16 | 262.9 | 12.4 | 13 |
| UL2464 | 20AWG*25C | 26 | 0.16 | 273.5 | 12.7 | 13.3 |
| UL2464 | 20AWG*26C | 26 | 0.16 | 281.1 | 12.7 | 13.3 |
| UL2464 | 20AWG*27C | 26 | 0.16 | 288.7 | 12.7 | 13.3 |
| UL2464 | 20AWG*28C | 26 | 0.16 | 301.4 | 13.1 | 13.7 |
| UL2464 | 20AWG*29C | 26 | 0.16 | 309 | 13.1 | 13.7 |
| UL2464 | 20AWG*30C | 26 | 0.16 | 316.6 | 13.1 | 13.7 |
| UL2464 | 20AWG*31C | 26 | 0.16 | 330 | 13.7 | 14.3 |
| UL2464 | 20AWG*32C | 26 | 0.16 | 337.6 | 13.7 | 14.3 |
| UL2464 | 20AWG*33C | 26 | 0.16 | 345.3 | 13.7 | 14.3 |
| UL2464 | 20AWG*34C | 26 | 0.16 | 359.1 | 14.2 | 14.8 |
| UL2464 | 20AWG*35C | 26 | 0.16 | 366.7 | 14.2 | 14.8 |
| UL2464 | 20AWG*36C | 26 | 0.16 | 374.3 | 14.2 | 14.8 |
| UL2464 | 20AWG*37C | 26 | 0.16 | 381.9 | 14.2 | 14.8 |
| UL2464 | 18AWG*2C | 41 | 0.16 | 57.9 | 5.9 | 6.3 |
| UL2464 | 18AWG*3C | 41 | 0.16 | 69.9 | 6.2 | 6.6 |
| UL2464 | 18AWG*4C | 41 | 0.16 | 85.3 | 6.8 | 7.2 |
| UL2464 | 18AWG*5C | 41 | 0.16 | 94.2 | 7.4 | 7.8 |
| UL2464 | 18AWG*6C | 41 | 0.16 | 109.6 | 8 | 8.4 |
| UL2464 | 18AWG*7C | 41 | 0.16 | 119.6 | 8 | 8.4 |
| UL2464 | 18AWG*8C | 41 | 0.16 | 135.3 | 8.7 | 9.1 |
| UL2464 | 18AWG*9C | 41 | 0.16 | 154.3 | 9.6 | 10.2 |
| UL2464 | 18AWG*10C | 41 | 0.16 | 173.4 | 10.2 | 10.8 |
| UL2464 | 18AWG*11C | 41 | 0.16 | 188.2 | 10.6 | 11.2 |
| UL2464 | 18AWG*12C | 41 | 0.16 | 195.6 | 10.6 | 11.2 |
| UL2464 | 18AWG*13C | 41 | 0.16 | 202 | 11.2 | 11.8 |
| UL2464 | 18AWG*14C | 41 | 0.16 | 212 | 11.2 | 11.8 |
| UL2464 | 18AWG*15C | 41 | 0.16 | 228.3 | 11.8 | 12.4 |
| UL2464 | 18AWG*16C | 41 | 0.16 | 238.4 | 11.8 | 12.4 |
| UL2464 | 18AWG*17C | 41 | 0.16 | 255.3 | 12.5 | 13.1 |
| UL2464 | 18AWG*18C | 41 | 0.16 | 265.3 | 12.5 | 13.1 |
| UL2464 | 18AWG*19C | 41 | 0.16 | 275.3 | 12.5 | 13.1 |
| UL2464 | 18AWG*20C | 41 | 0.16 | 289 | 12.8 | 13.4 |
| UL2464 | 18AWG*21C | 41 | 0.16 | 302.5 | 13.1 | 13.7 |
| UL2464 | 18AWG*22C | 41 | 0.16 | 322.5 | 14 | 14.6 |
| UL2464 | 18AWG*23C | 41 | 0.16 | 340.3 | 14.7 | 15.3 |
| UL2464 | 18AWG*24C | 41 | 0.16 | 350.3 | 14.7 | 15.3 |
| UL2464 | 18AWG*25C | 41 | 0.16 | 364.5 | 15 | 16.2 |
| UL2464 | 18AWG*26C | 41 | 0.16 | 374.5 | 15 | 16.2 |
| UL2464 | 18AWG*27C | 41 | 0.16 | 384.5 | 15 | 16.2 |
| UL2464 | 18AWG*28C | 41 | 0.16 | 401.6 | 15.6 | 16.8 |
| UL2464 | 18AWG*29C | 41 | 0.16 | 411.6 | 15.6 | 16.8 |
| UL2464 | 18AWG*30C | 41 | 0.16 | 421.6 | 15.6 | 16.8 |
| UL2464 | 18AWG*31C | 41 | 0.16 | 439.7 | 16.2 | 17.4 |
| UL2464 | 18AWG*32C | 41 | 0.16 | 449.7 | 16.2 | 17.4 |
| UL2464 | 18AWG*33C | 41 | 0.16 | 459.7 | 16.2 | 17.4 |
| UL2464 | 18AWG*34C | 41 | 0.16 | 478.4 | 16.9 | 18.1 |
| UL2464 | 18AWG*35C | 41 | 0.16 | 488.4 | 16.9 | 18.1 |
| UL2464 | 18AWG*36C | 41 | 0.16 | 498.4 | 16.9 | 18.1 |
| UL2464 | 18AWG*37C | 41 | 0.16 | 508.4 | 16.9 | 18.1 |
| UL2464 | 16AWG*2C | 65 | 0.16 | 81.4 | 6.9 | 7.3 |
| UL2464 | 16AWG*3C | 65 | 0.16 | 99.1 | 7.3 | 7.7 |
| UL2464 | 16AWG*4C | 65 | 0.16 | 121.7 | 8 | 8.4 |
| UL2464 | 16AWG*5C | 65 | 0.16 | 145.6 | 8.8 | 9.2 |
| UL2464 | 16AWG*6C | 65 | 0.16 | 170.6 | 9.6 | 10 |
| UL2464 | 16AWG*7C | 65 | 0.16 | 188 | 9.6 | 10 |
| UL2464 | 16AWG*8C | 65 | 0.16 | 213.2 | 10.4 | 11.0 |
| UL2464 | 16AWG*9C | 65 | 0.16 | 243.4 | 11.5 | 12.1 |
| UL2464 | 16AWG*10C | 65 | 0.16 | 273.9 | 12.3 | 12.9 |
| UL2464 | 16AWG*11C | 65 | 0.16 | 298.3 | 12.8 | 13.4 |
| UL2464 | 16AWG*12C | 65 | 0.16 | 311.6 | 12.8 | 13.4 |
| UL2464 | 16AWG*13C | 65 | 0.16 | 322.2 | 13.5 | 14.1 |
| UL2464 | 16AWG*14C | 65 | 0.16 | 339.6 | 13.5 | 14.1 |
| UL2464 | 16AWG*15C | 65 | 0.16 | 365.9 | 14.2 | 14.8 |
| UL2464 | 16AWG*16C | 65 | 0.16 | 383.3 | 14.2 | 14.8 |
| UL2464 | 16AWG*17C | 65 | 0.16 | 410.5 | 15.1 | 16.3 |
| UL2464 | 16AWG*18C | 65 | 0.16 | 427.9 | 15.1 | 16.3 |
| UL2464 | 16AWG*19C | 65 | 0.16 | 445.3 | 15.1 | 16.3 |
| UL2464 | 16AWG*20C | 65 | 0.16 | 467.8 | 15.5 | 16.7 |
| UL2464 | 16AWG*21C | 65 | 0.16 | 490.2 | 15.9 | 17.1 |
| UL2464 | 16AWG*22C | 65 | 0.16 | 521.8 | 17 | 18.2 |
| UL2464 | 16AWG*23C | 65 | 0.16 | 550.3 | 17.8 | 19.0 |
| UL2464 | 16AWG*24C | 65 | 0.16 | 567.7 | 17.8 | 19.0 |
| UL2464 | 16AWG*25C | 65 | 0.16 | 591 | 18.2 | 19.4 |
| UL2464 | 16AWG*26C | 65 | 0.16 | 608.4 | 18.2 | 19.4 |
| UL2464 | 16AWG*27C | 65 | 0.16 | 625.8 | 18.2 | 19.4 |
| UL2464 | 16AWG*28C | 65 | 0.16 | 653.3 | 18.9 | 20.1 |
| UL2464 | 16AWG*29C | 65 | 0.16 | 670.7 | 18.9 | 20.1 |
| UL2464 | 16AWG*30C | 65 | 0.16 | 688.1 | 18.9 | 20.1 |
| UL2464 | 16AWG*31C | 65 | 0.16 | 717 | 19.7 | 20.9 |
| UL2464 | 16AWG*32C | 65 | 0.16 | 734.4 | 19.7 | 20.9 |
| UL2464 | 16AWG*33C | 65 | 0.16 | 751.8 | 19.7 | 20.9 |
| UL2464 | 16AWG*34C | 65 | 0.16 | 781.6 | 20.5 | 22.2 |
| UL2464 | 16AWG*35C | 65 | 0.16 | 799 | 20.5 | 21.7 |
| UL2464 | 16AWG*36C | 65 | 0.16 | 816.4 | 20.5 | 21.7 |
| UL2464 | 16AWG*37C | 65 | 0.16 | 833.8 | 20.5 | 21.7 |
| UL2464 | 14AWG*2C | 43 | 0.25 | 116.6 | 8.2 | 8.6 |
| UL2464 | 14AWG*3C | 43 | 0.25 | 143.8 | 8.7 | 9.1 |
| UL2464 | 14AWG*4C | 43 | 0.25 | 178.1 | 9.6 | 10 |
| UL2464 | 14AWG*5C | 43 | 0.25 | 214.6 | 10.6 | 11.2 |
| UL2464 | 14AWG*6C | 43 | 0.25 | 252.6 | 11.7 | 12.3 |
| UL2464 | 14AWG*7C | 43 | 0.25 | 279.9 | 11.7 | 12.3 |
| UL2464 | 14AWG*8C | 43 | 0.25 | 318.4 | 12.7 | 13.3 |
| UL2464 | 14AWG*9C | 43 | 0.25 | 364.4 | 14.1 | 14.7 |
| UL2464 | 14AWG*10C | 43 | 0.25 | 411.5 | 15.2 | 16.4 |
| UL2464 | 14AWG*11C | 43 | 0.25 | 449.4 | 15.7 | 16.9 |
| UL2464 | 14AWG*12C | 43 | 0.25 | 470.1 | 15.7 | 16.9 |
| UL2464 | 14AWG*13C | 43 | 0.25 | 484 | 16.6 | 17.8 |
| UL2464 | 14AWG*14C | 43 | 0.25 | 511.3 | 16.6 | 17.8 |
| UL2464 | 14AWG*15C | 43 | 0.25 | 551.6 | 17.6 | 18.8 |
| UL2464 | 14AWG*16C | 43 | 0.25 | 578.9 | 17.6 | 18.8 |
| UL2464 | 14AWG*17C | 43 | 0.25 | 620.5 | 18.6 | 19.8 |
| UL2464 | 14AWG*18C | 43 | 0.25 | 647.8 | 18.6 | 19.8 |
| UL2464 | 14AWG*19C | 43 | 0.25 | 675.2 | 18.6 | 19.8 |
| UL2464 | 14AWG*20C | 43 | 0.25 | 710.1 | 19.2 | 20.4 |
| UL2464 | 14AWG*21C | 43 | 0.25 | 744.7 | 19.7 | 20.9 |
| UL2464 | 14AWG*22C | 43 | 0.25 | 793 | 21.1 | 22.3 |
| UL2464 | 14AWG*23C | 43 | 0.25 | 836.7 | 22.1 | 23.3 |
| UL2464 | 14AWG*24C | 43 | 0.25 | 864 | 22.1 | 23.3 |
| UL2464 | 14AWG*25C | 43 | 0.25 | 900.1 | 22.6 | 23.8 |
| UL2464 | 14AWG*26C | 43 | 0.25 | 927.4 | 22.6 | 23.8 |
| UL2464 | 14AWG*27C | 43 | 0.25 | 954.7 | 22.6 | 23.8 |
| UL2464 | 14AWG*28C | 43 | 0.25 | 997.1 | 23.6 | 24.8 |
| UL2464 | 14AWG*29C | 43 | 0.25 | 1024.4 | 23.6 | 24.8 |
| UL2464 | 14AWG*30C | 43 | 0.25 | 1051.7 | 23.6 | 24.8 |
| UL2464 | 14AWG*31C | 43 | 0.25 | 1096.2 | 24.5 | 25.7 |
| UL2464 | 14AWG*32C | 43 | 0.25 | 1123.5 | 24.5 | 25.7 |
| UL2464 | 14AWG*33C | 43 | 0.25 | 1150.8 | 24.5 | 25.7 |
| UL2464 | 14AWG*34C | 43 | 0.25 | 1196.7 | 25.6 | 26.8 |
| UL2464 | 14AWG*35C | 43 | 0.25 | 1224.1 | 25.6 | 26.8 |
| UL2464 | 14AWG*36C | 43 | 0.25 | 1251.4 | 25.6 | 26.8 |
| UL2464 | 14AWG*37C | 43 | 0.25 | 1278.7 | 25.6 | 26.8 |
